Elegance dB9-S

- Kết cấu: 3 đường tiếng

- Dải tần: 26Hz – 30kHz

- Độ nhạy: 89dB

- Trở kháng danh định: 4Ohm

- Công suất trung bình: 250W

- Kích thước (Cao x Rộng x Sâu): 104,1 x 41 x 60,6cm

Mô tả chi tiết

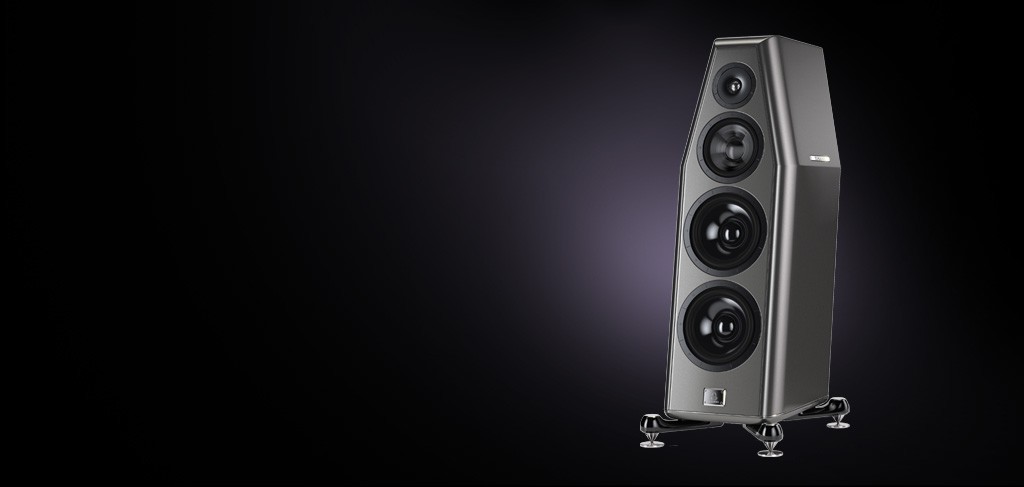

Elegance dB9-S

The Elegance collection is succeeding the very successful Ceramique line of high-end loudspeakers from Kharma. The Ceramique loudspeaker line was introduced in 1998 and the use of Ceramique-based drivers was the reason for naming this series like we did.

Recently the Elegance dB9 was launched with the Kharma Composite driver replacing the Ceramique drivers from the Ceramique line. However as eager as Kharma is to strive to perfection in everything we do, Kharma already has developed a signature version of the dB9, called the dB9-S. This new dB9-S has amongst others our new Omega 7 driver for the midrange and extra cross section for the silver internal wiring.

Elegance dB9-S: Specifications

System features

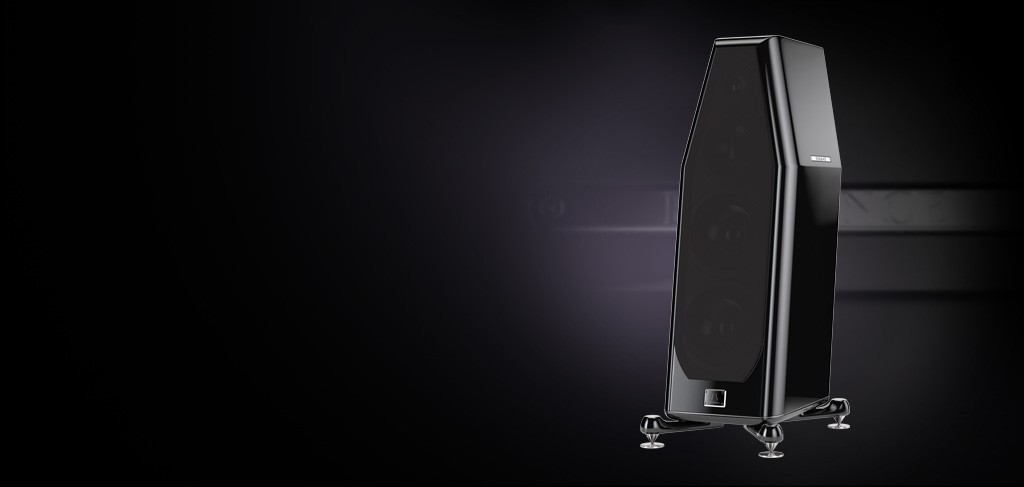

One of the many redesigned parts of the Elegance is the grill of the dB9-S. This new improved grill is made detachable by embedded magnets to really have the freedom to adapt the Elegance dB9-S to your own style. With grill the Elegance gives an elegant and luxury feeling, where the dB9-S without grill shows the beauty of the new composite drivers without actual showing that a grill could be attached. Therefore the Elegance dB9-S can easily blend in both contemporary as well as modern interiors.

Moreover the Elegance dB9-S has the new special feature of trimmable luxury rings around the drivers, which hide the mechanical screws of the driver. The unique feature is that the rings are made magnetic and so can easily be interchanged with other versions of the trimmable rings.

New connectors have especially been designed for the new Elegance series, which is done for user convenience and for high pressure quality contact. As a result the Kharma Binding Post system for the Elegance (KBPS-EL) can easily give great contact pressure applied by just the twist of a hand.

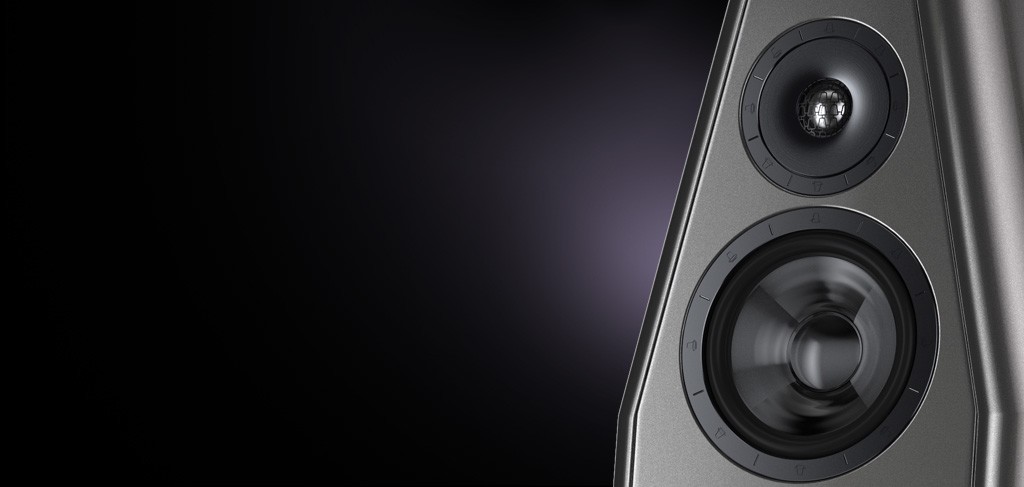

Drivers

The midrange of this speaker is formed by the 7-inch Kharma Omega 7 driver which is equipped with a new cone technology developed by Kharma. This cone is made of ultra high-modulus carbon technology, which consists of the best fibres you can find in the world at this moment. Moreover, finite element analysis with advanced computer systems have leaded to optimised cone-shapes with a near perfect behaviour for a 7-inch driver.

The effect of this innovation combined with the new development of a pure Beryllium tweeter is very clearly audible in even a short listening session. Ultra high resolution in the midrange depicting many layers and sound colours like in excellent wines, where the complexity of the whole history of making the wine, can be tasted in a moment. It is like the music is coming from an inner space with an infinite number of layering. No mp3 allowed please, give full credit to these wonders

High frequencies:	1 x 1-inch True Beryllium tweeter
Mid frequencies:	1 x 7-inch Kharma Omega 7 driver
Low frequencies:	2 x 9-inch Aluminium woofer

Technical specs

All new innovations and ideas have resulted in the technical specifications as given below.

Type:	EL-dB9-S-1.0
System:	3-way
RMS Power:	250 Watt
Program power:	500 Watt
Frequency range:	26 Hz - 30 kHz
Nominal Impedence:	4 Ohm
Efficience 2,83V / 1m:	89 dB
Maximum SPL:	113 dB

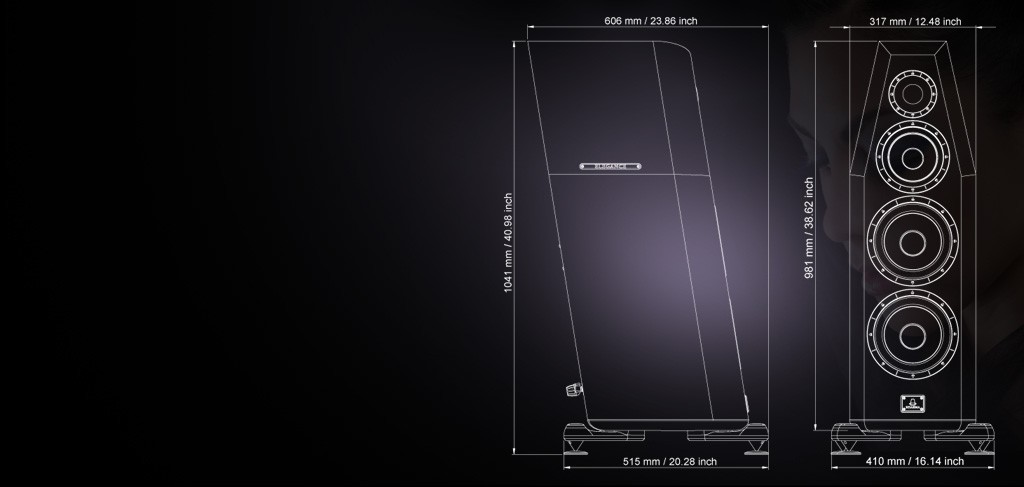

Dimensions

The dimensions of the Elegance dB9-S are the same as for the dB9, because only the technical and audible features of this signature version of the dB9 are improved.

Including Stand:
Width:	410 mm / 16.14 inch
Height:	1041 mm / 40.98 inch
Depth:	606 mm / 23.86 inch
Excluding stand:
Width:	317 mm / 12.48 inch
Height:	981 mm / 38.62 inch

Advice

Advised amplifier

The recommended amplifier for the new Elegance dB9-S is at the moment the Matrix MP150 or the Exquisite MP1000 series.

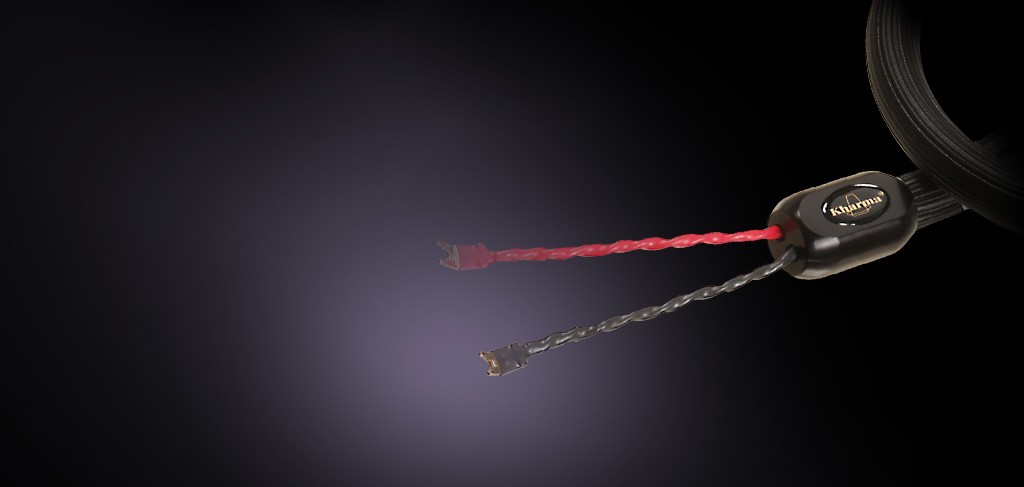

Advised external cable

It is recommended to extend the Elegance dB9-S with the cables from the Supreme Reference series or higher Kharma cable series. The Kharma cables do offer a higher synergy, simply because all Kharma loudspeakers have been voiced with Kharma cables during development and also because it makes common sense that loudspeakers with silver internal cabling should optimally be matched with silver external cables and all Kharma cables are full silver cables.

Elegance dB9-S: Options

A Kharma product must not only have an unbelievable refined sound, which meets the needs of a true music lover, but also must have an astonishing finish to compete with the musicality of the system. As known by Kharma, every customer can have a taste of its own. Therefore Kharma developed two programs to be able to fulfil all levels of customization.

Primary Stock Program

This program has been targeted as to create the shortest possible delivery time for the official Kharma products. This program is therefore based on the most popular Kharma finishes, which have proven their looks in the past by many successful sales. In this way we can deliver both the high refined sound as the astonishing finish that can be expected from Kharma.

Kharma Optionary Program

The visual tuning in the Optionary Program will give the customer the opportunity to choose between special selected Kharma colours. These colours have a higher level of customization and therefore the delivery time will be slightly longer than a Stock Program colour.

Colours shown only give an indication of the real paint colour, contact your dealer for references.
