mbl 9008 A Mono / Stereo

MBL là một thương hiệu nổi tiểng đến từ nước Đức, trong đó có dòng Power Amplifier với rất nhiều các sản phẩm nổi tiếng, giờ đây đã có mặt tại Audio Huylananh và được phân phối khắp thị trường Audio cả nước.

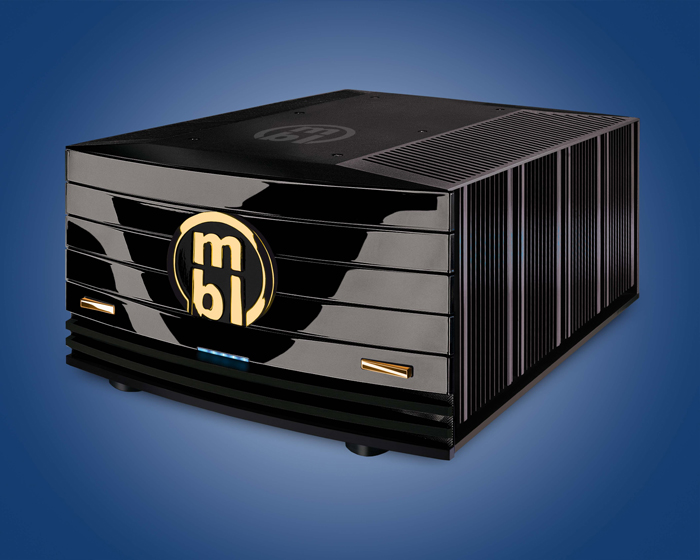

 Mono / Stereo Power Amplifier mbl 9008 A

The circuitry technology concepts developed by MBL, such as the "DPP" (Direct Push Pull) and "IGC" (Isolated Gain Cell), are combined here with a unique new circuit board design with ultra-short signal paths. In addition, special low-induction mbl components in the passive environment make it possible to exploit the full bandwidth of this amplifier.

Mono / Stereo Power Amplifier mbl 9008A

  • Multi-layer PCB with heavy CU planes in the output section
  • Gold plated copper planes
  • Layout in "ground-plane" and "eye-of-an-needle" techniques
  • Low-induction MPC resistors and MHz-type RSH capacitors
  • Super-fast ring-emitter transistors in X-crossed array
  • Regulated power supply for the Class-A drive electronics
  • Custom MBL -built binding posts made of pure copper
  • No output relays
  • 198.000 uF custom built "long life" power capacitor bank
  • Pure copper internal wiring 6NCU
  • DC servo coupling
  • Flat frequency response to beyond 350 kHz
  • Outstanding mechanical structure, in a compact housing

Mono / Stereo Power Amplifier mbl 9008A

This fully balanced differential amplifier employs 2 custom built toroidal transformers for the power stage and 1 custom-built, fully-shielded transformer for the driver stage. All mbl transformers are mounted on a metal shield and encased in epoxy for ultra-effective damping. The output stage and the driver stage employs separate supplies to fully isolate the output stage from the input stage.

Mono / Stereo Power Amplifier mbl 9008A

As far as the sound is concerned, this is the weapon to protect the beauty of the music from all deleterious influences. This is the amplifier you have always been seeking for.



SPECIFICATIONS

Peak Pulse Power 2.200 / 1.200 W (2Ω)
Rated Power 1.000 / 330 W (2Ω)
840 / 210 W (4Ω)
440 / 130 W (8Ω)
Output Voltage max 100 / 50 V peak
Output Current max 40 A peak
S/N ratio unweighted 114 / 113 dB
S/N ratio A-weighted 118 / 123 dB
Frequency Response DC - 200 / 320 kHz
Distortion <0.003%, 4 , 1kHz, 50W
Input Impedance 20 k , XLR (Mono)
10 k , RCA (Stereo)
Damping Factor 300 @ 1 kHz (4 )
Power Consumption
1. on 20 VA (Stand-by)
  100 VA (Idle Mode)
  600 VA max (4 , Mono)
2. on 1.200 VA max (4 , Mono)
3. on
Line Voltage(factory set) 220 - 240 Vac, 50/60 Hz
or 110 - 120 Vac, 50/60 Hz
Dimensions (WxHxD) 480 x 320 x 660 mm
19 x 13 x 26“
Weight 60 kg, 132 lbs
